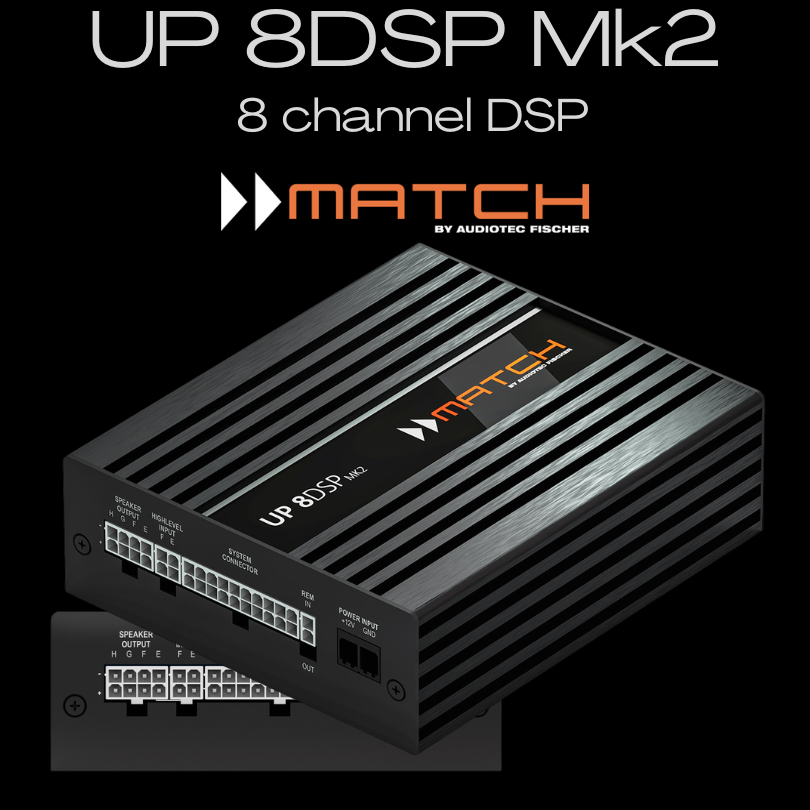

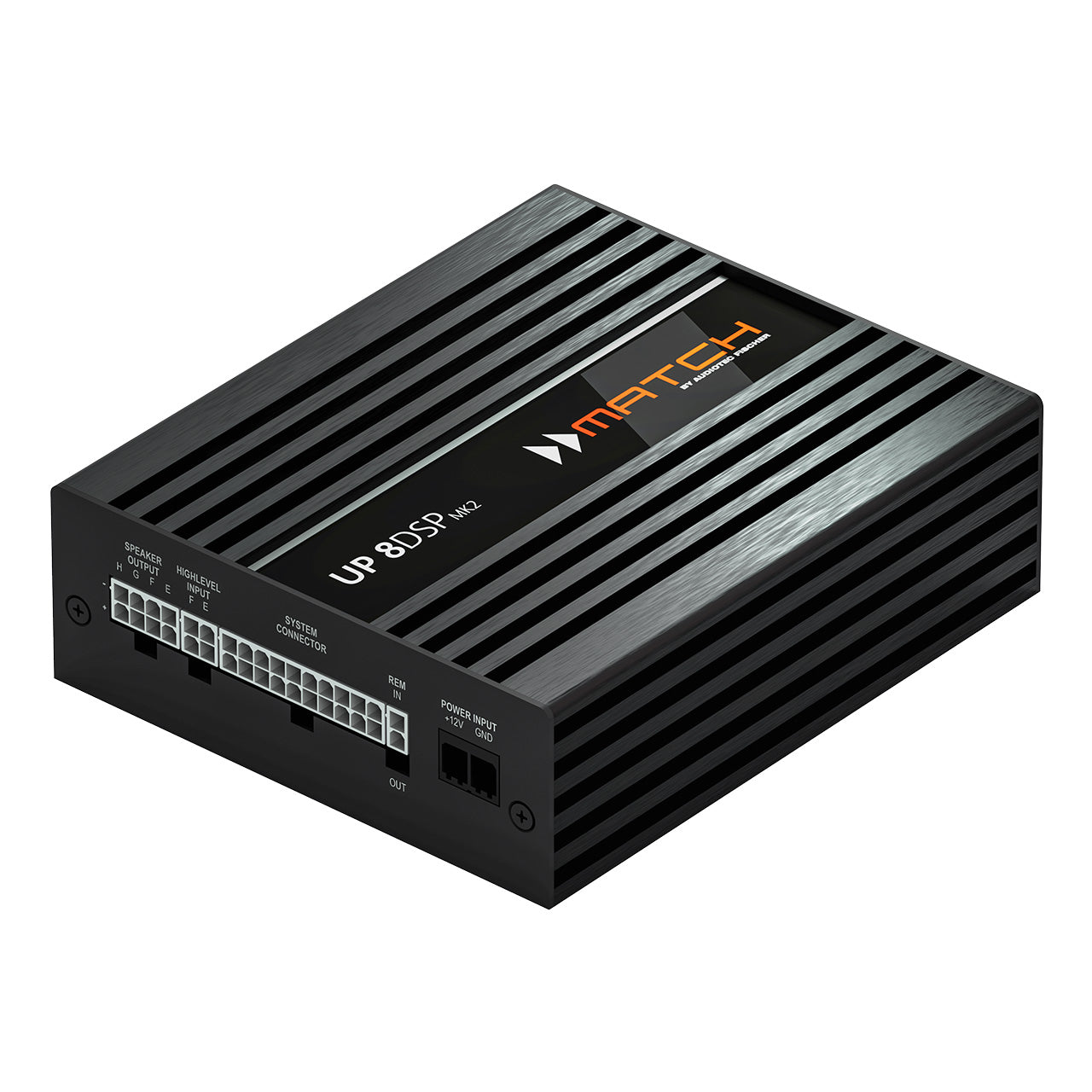

Match UP 8DSP Mk2 8/9 channel DSP amp
...
$1,699.00
UP 8DSP Mk2
9 channel DSP
8 channel output amplification
Serious power, smart OEM integration
The MATCH UP 8DSP MK2 is a strong choice if you want a genuine hi-fi upgrade without compromising your factory setup. At its core is an 8-channel Class GD amplifier paired with a 9-channel integrated DSP — a combination that delivers real headroom and dynamic range, not just a marginal improvement over stock.

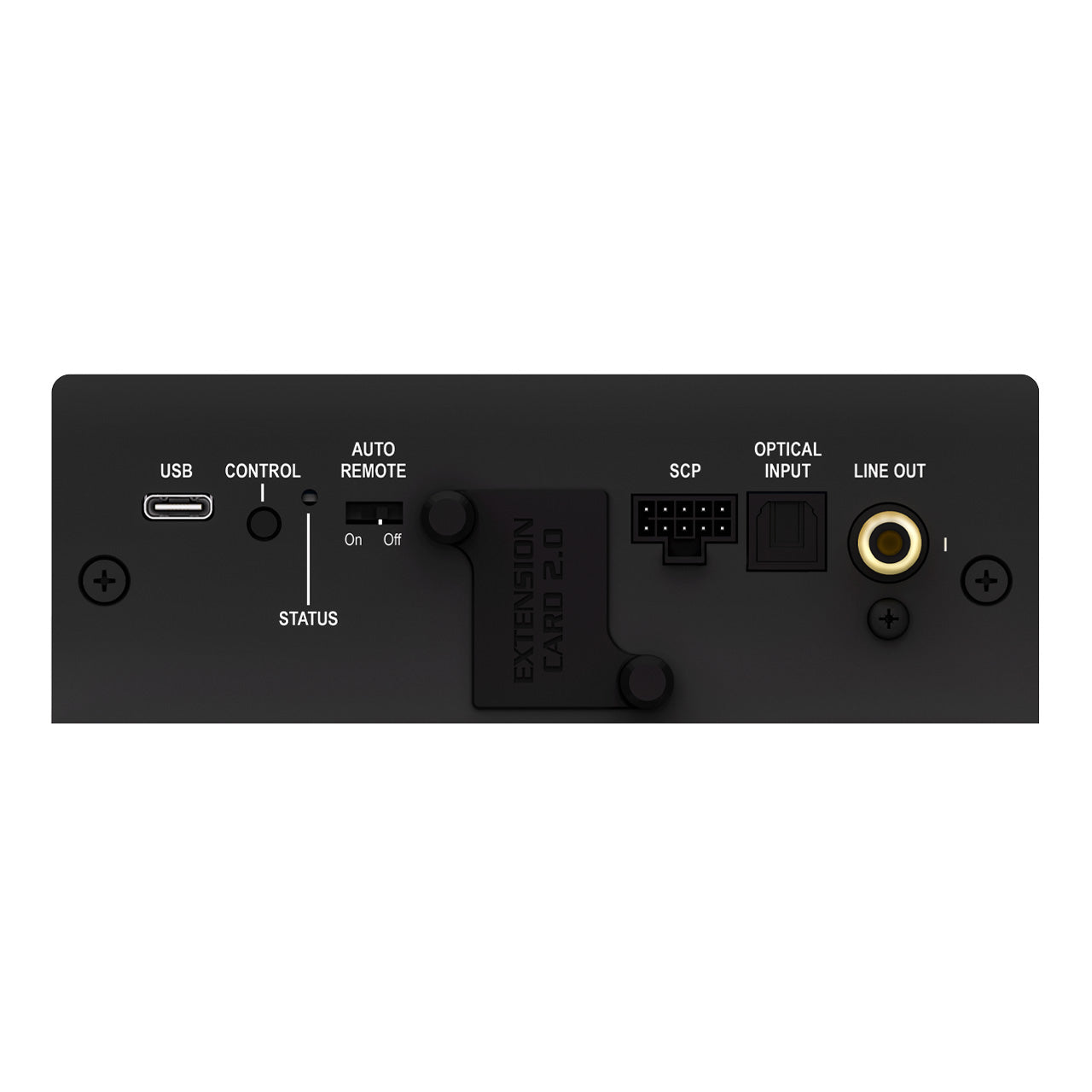

The MK2 update refines the original concept with two practical additions: a USB-C port and an Extension Card 2.0 slot. Both keep the unit relevant for current installs and give you room to expand the system down the track without a full rework.
Clean integration, expandable by design, and enough grunt to transform how your vehicle sounds.
Features
- 8-channel amplifier with ultra efficient Class GD concept, which combines outstanding sound quality with maximum efficiency
- 9 DSP channels for maximum flexibility when upgrading multi-channel factory sound systems
- Optional cable harnesses for easy integration into existing factory sound systems
- EV-Ready – extended input voltage range up to 18 V for stable operation even in electric vehicles with increased on-board voltages
- Smart 6-channel highlevel input with ADEP.3 circuit for seamless OEM integration
- Extremely powerful “fixed point” Audio DSP with 64 Bit resolution
- VCP (Virtual Channel Processing) offers outstanding flexibility in configuring complex sound systems, thanks to:
- Cross-channel group equalizers that affect several output channels simultaneously
- Multi-way speaker configuration of DSP sound effects (SFX)
- Additional features such as Rear Attenuation
- ACO – Advanced 32 Bit CoProcessor platform for system and DSP features like:
- AISA (Advanced Input Signal Analyzer) and InputEQ for easy analysis and correction of input signals
- DLC (Dynamic Loudness Control) and RTC (Remote Tone Control) for volume-dependent dynamic adjustment of highs and lows
- Proprietary TuneEQ function for automated adjustment of the input, virtual and output equalizers
- SFX Sound Effects – Augmented Bass Processing, RealCenter & Co.
- Stabilized Output Power technology (SOP Max) for consistently stable output power – delivering full performance at all times, regardless of input voltage
- Extension Card 2.0 slot for system add-ons like Bluetooth® HD audio streaming, extra analog inputs, or future signal sources
- Optical input in SPDIF format with sampling rate between 12 and 96 kHz
- Mono RCA output for connecting external amplifiers, e.g. subwoofer amplifiers such as the MATCH UP 1FX
- Compact, future-proof SCP (Smart Control Port) for connecting remote controls and accessories
- Intelligent power management ensures perfect voltage stability across all modern vehicle platforms
- Start-Stop capable power supply down to 6 Volts supply voltage
- Auto Remote switch for amplifier activation without the need for an external remote signal
- Compact design with low heat dissipation thanks to extraordinary efficiency
- Maximum control with DSP PC-Tool 6 – professional software for precise amplifier configuration and accurate sound tuning in the vehicle
