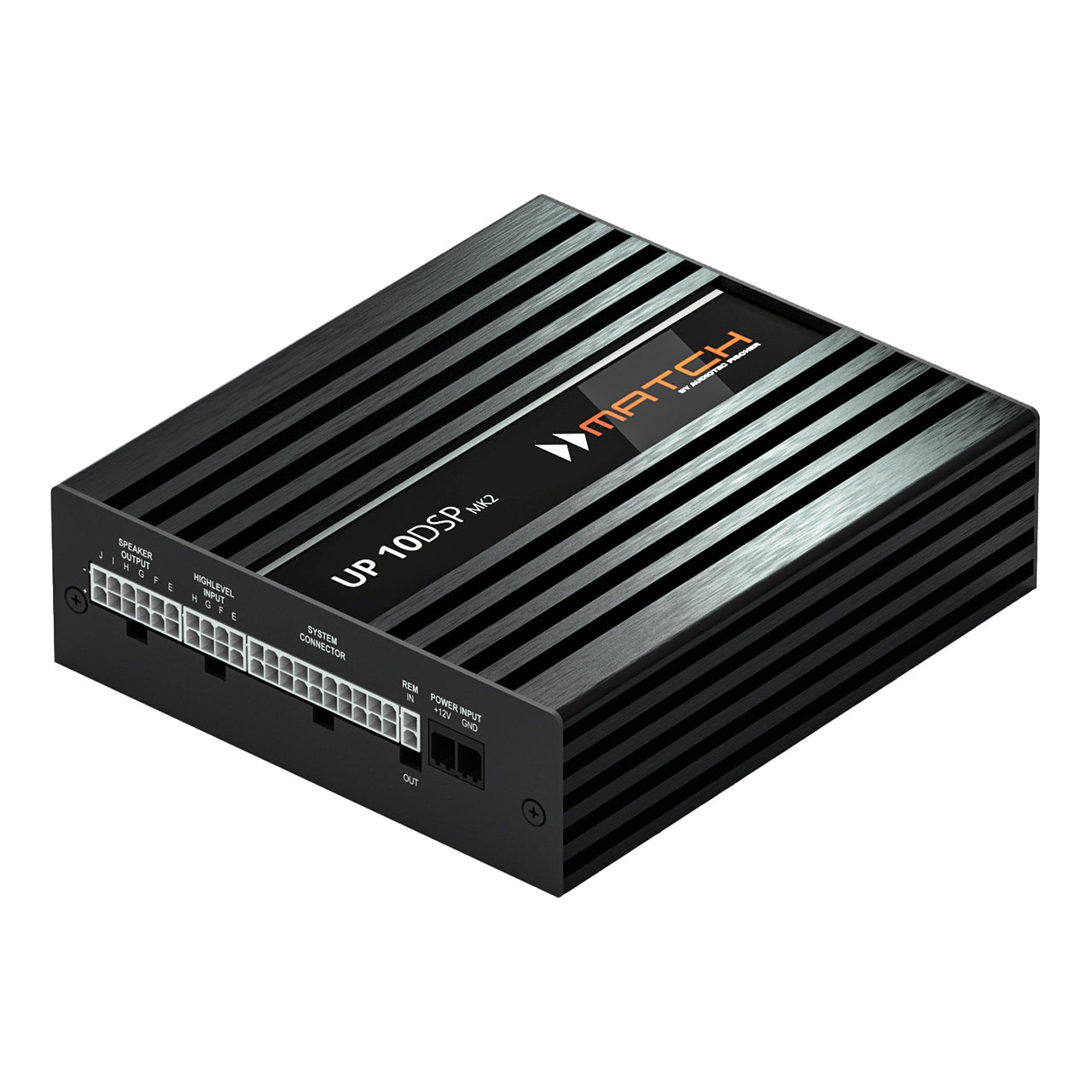

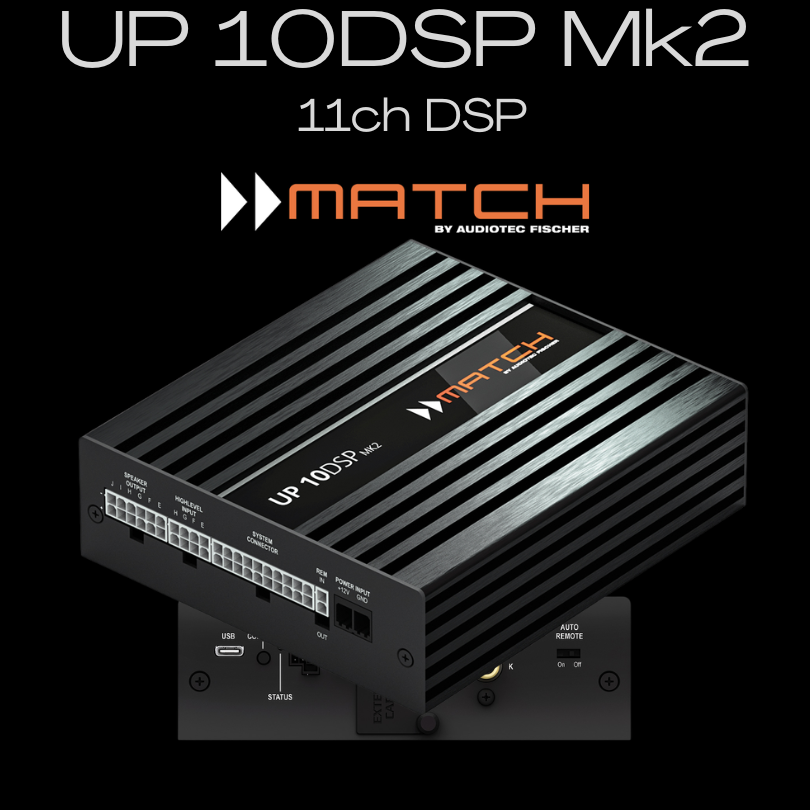

Match Up 10DSP Mk2 10ch DSP amplifier
UP 10DSP
10ch amplifier, 11ch DSP
Upgrade your OEM sound system without the compromise
If your vehicle has a complex multi-channel factory sound system, the MATCH UP 10DSP MK2 is built for exactly that situation. It pairs a 10-channel amplifier with an 11-channel integrated DSP, giving you a serious step up in audio quality while fitting cleanly and discreetly into your existing setup — no messy workarounds or visible modifications.
The MK2 revision brings the unit current with a USB-C connection and an Extension Card 2.0 slot, so you’re not locked into yesterday’s hardware. The expansion slot in particular means you can grow the system later without starting from scratch.
The result is a flexible, high-performance foundation that’s been designed specifically around the demands of modern vehicle audio architectures — powerful enough to make a real difference, and refined enough to do it properly.
Features
- 10-channel amplifier with ultra-efficient Class GD concept, which combines outstanding sound quality with maximum efficiency
- 11 DSP channels for maximum flexibility when upgrading multi-channel factory sound systems
- Optional cable harnesses for easy integration into existing factory sound systems
- EV-Ready – extended input voltage range up to 18 V for stable operation even in electric vehicles with increased on-board voltages

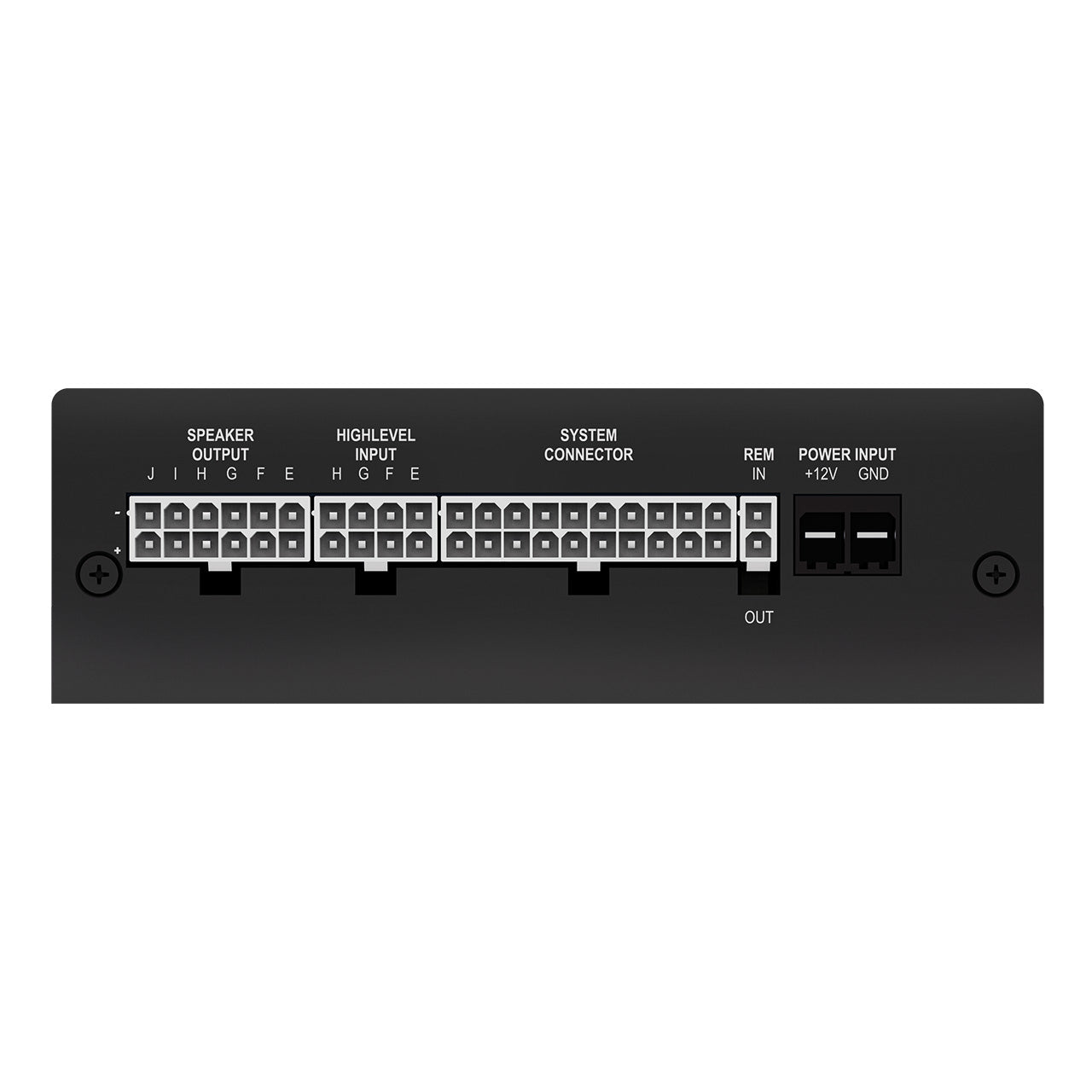

- Smart 8-channel highlevel input with ADEP.3 circuit for seamless OEM integration
- Two of these inputs are high-voltage capable with up to 32 V RMS input sensitivity
- Extremely powerful “fixed point” Audio DSP with 64 Bit resolution
- VCP (Virtual Channel Processing) offers outstanding flexibility in configuring complex sound systems, thanks to:
- Cross-channel group equalizers that affect several output channels simultaneously
- Multi-way speaker configuration of DSP sound effects (SFX)
- Additional features such as Rear Attenuation
- 1:1 IOR (Input-to-Output Routing) in combination with the optional ANALOG IN Extension Card 2.0 – individual assignment of all high-level inputs to any amplifier output for direct input-to-output routing
- ACO – Advanced 32 Bit CoProcessor platform for system and DSP features like:
- AISA (Advanced Input Signal Analyzer) and InputEQ for easy analysis and correction of input signals
- DLC (Dynamic Loudness Control) and RTC (Remote Tone Control) for volume-dependent dynamic adjustment of highs and lows
- Proprietary TuneEQ function for automated adjustment of the input, virtual and output equalizers
- SFX Sound Effects – Augmented Bass Processing, RealCenter & Co.
- Stabilized Output Power technology (SOP Max) for consistently stable output power – delivering full performance at all times, regardless of input voltage

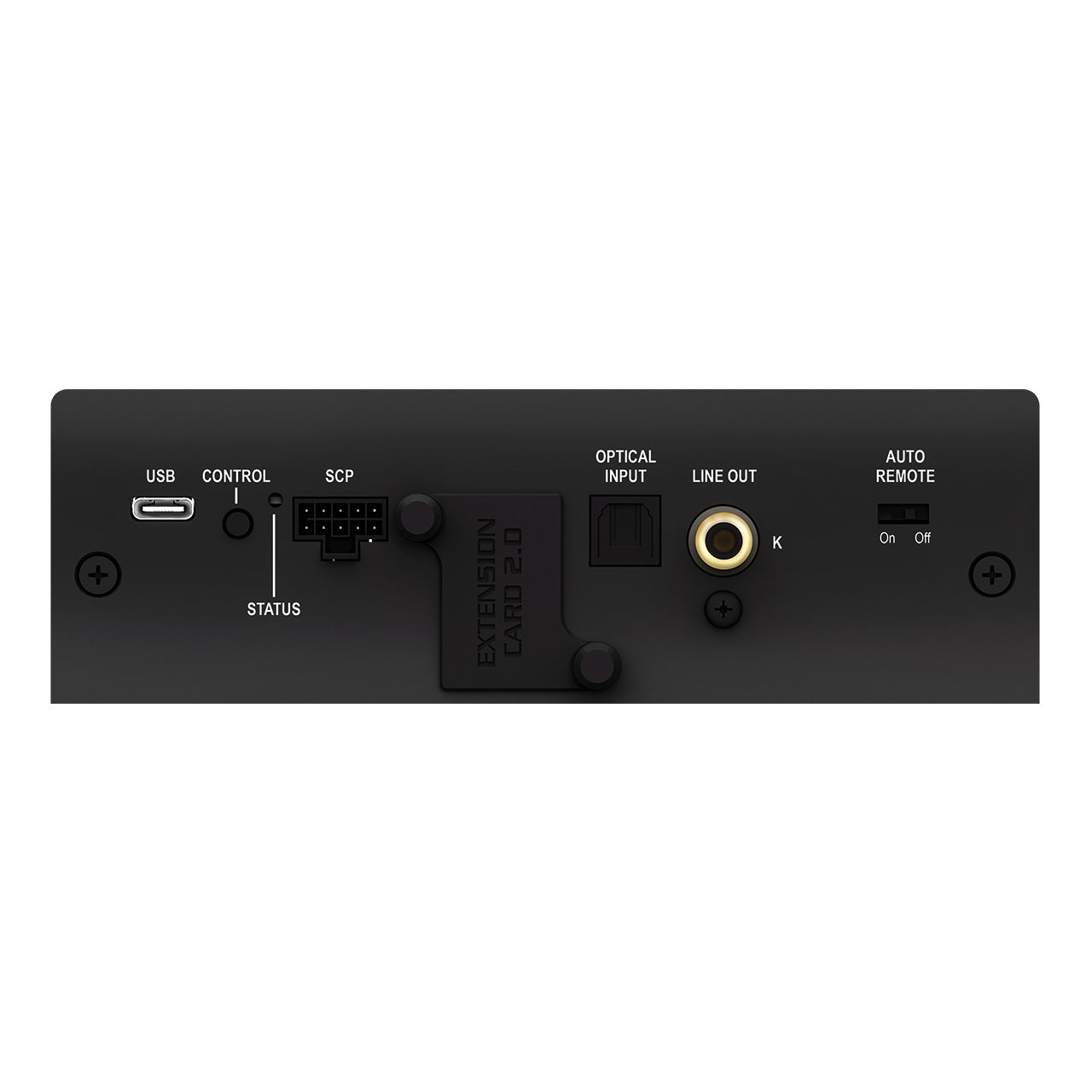

- Extension Card 2.0 slot for system add-ons like Bluetooth® HD audio streaming, extra analog inputs, or future signal sources
- Optical input in SPDIF format with sampling rate between 12 and 96 kHz
- Mono RCA output for connecting external amplifiers, e.g. subwoofer amplifiers such as the MATCH UP 1FX
- Compact, future-proof SCP (Smart Control Port) for connecting remote controls and accessories
- Intelligent power management ensures perfect voltage stability across all modern vehicle platforms
- Start-Stop capable power supply down to 6 Volts supply voltage
- Auto Remote switch for amplifier activation without the need for an external remote signal
- Compact design with low heat dissipation thanks to extraordinary efficiency
- Maximum control with DSP PC-Tool 6 – professional software for precise amplifier configuration and accurate sound tuning in the vehicle
